Livart Marine
Livart Marine, a member of Livart Group, was founded in 2007. After more than 10 years development, Livart Marine is a well known international famous company in marina business, it provides premium floating solutions to worldwide clients from design, engineering, fabrication, installation and maintenance.
MORELivart Standard Livart prides itself as the one-stop customer-focused centre; involving from proposal stage to full engineering design, manufacturing, installation,testing & commissioning and final completion stages.
Visual Identify
Based on the international standard, in according to marina site's environmental conditions, Livart Marine has a full set of calculation of the wave, wind, currency and boat impact
Marina Design
Based on the international standard, in according to marina site's environmental conditions, Livart Marine has a full set of calculation of the wave, wind, currency and boat impact…
Materials Test

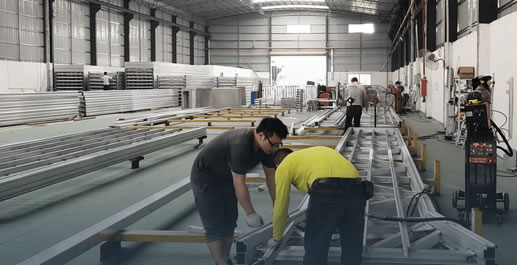

Fabrication Inspection

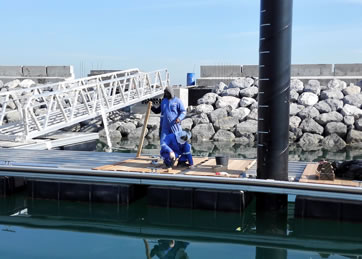

Installation Procedure
Operation & Maintenance
The pontoon can be made more beautiful and safer by carrying out regular repair and maintenance, which can also extend its service life.

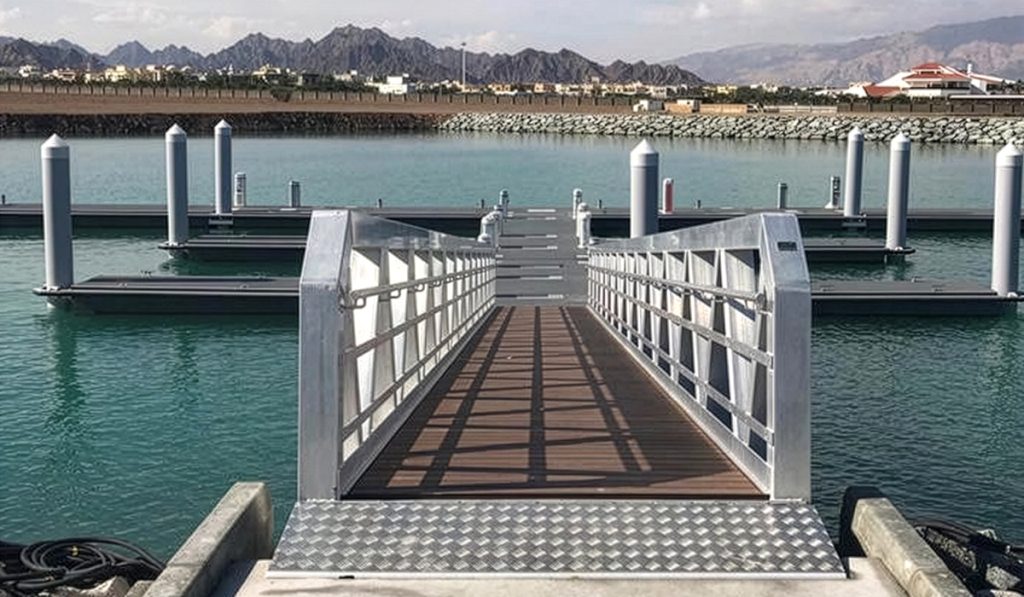

Aluminium gangway
Livart Marine Aluminium Gangways are designed using proprietary in-house fabricated aluminium sections, with adequate strength and durability. The Gangways typically feature a pipe-truss design and TIG / MIG welded from 6005 T6 and 6061 T6 aluminium alloy. The surface decking material could be selected from composites, natural hard-wood , natural soft-wood. These decking are fixed onto the aluminium structural chassis with SS316 stainless steel screws, and assembled together with nylon-roller scroll wheels, aluminium alloy hinge and transition plates, roller and hinge pins, and fastened with screws in SS316 stainless steel.
Floating Breakwater
Livart Marine floating breakwater are designed hydrodynamic to provide the beat attenuation of wind waves. Structural design is according to Eurocode 2 and manufacturing quality is assured under the International Norm ISO 9001:2015.
Livart Marine treats every floating breakwater as a unique project, making a case-specific structural and hydrodynamic engineering study. The consideration of the installation as a “long floating articulated structure”, fully guarantees the absence both of structural and joints problems in even the hard conditions.

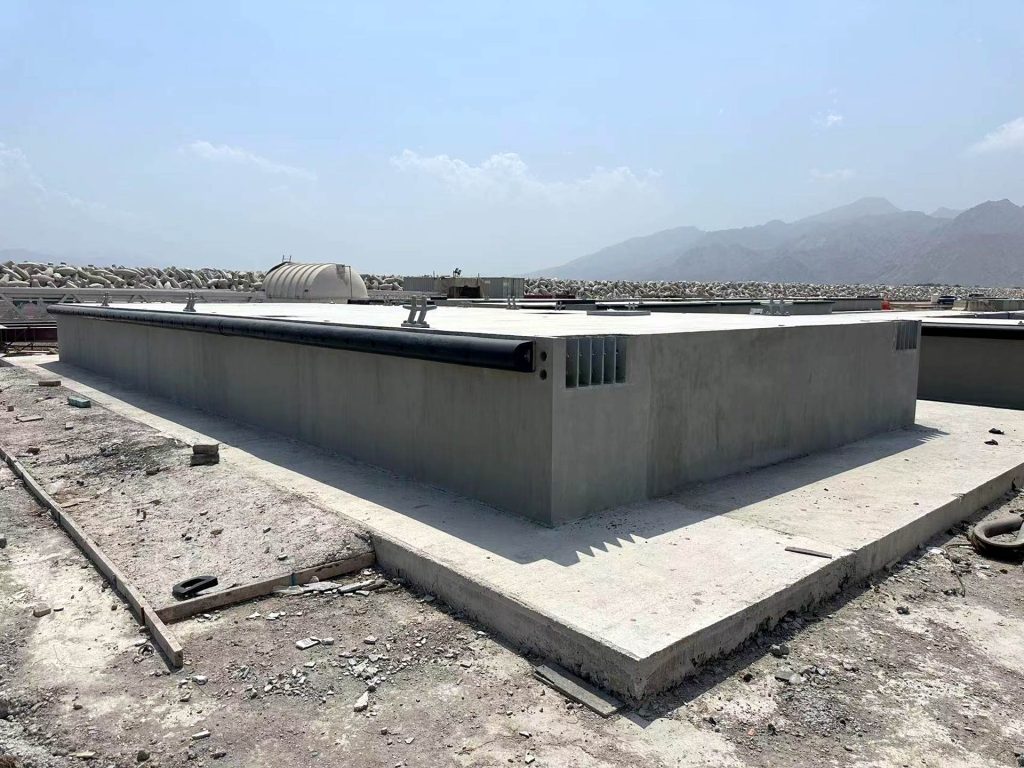

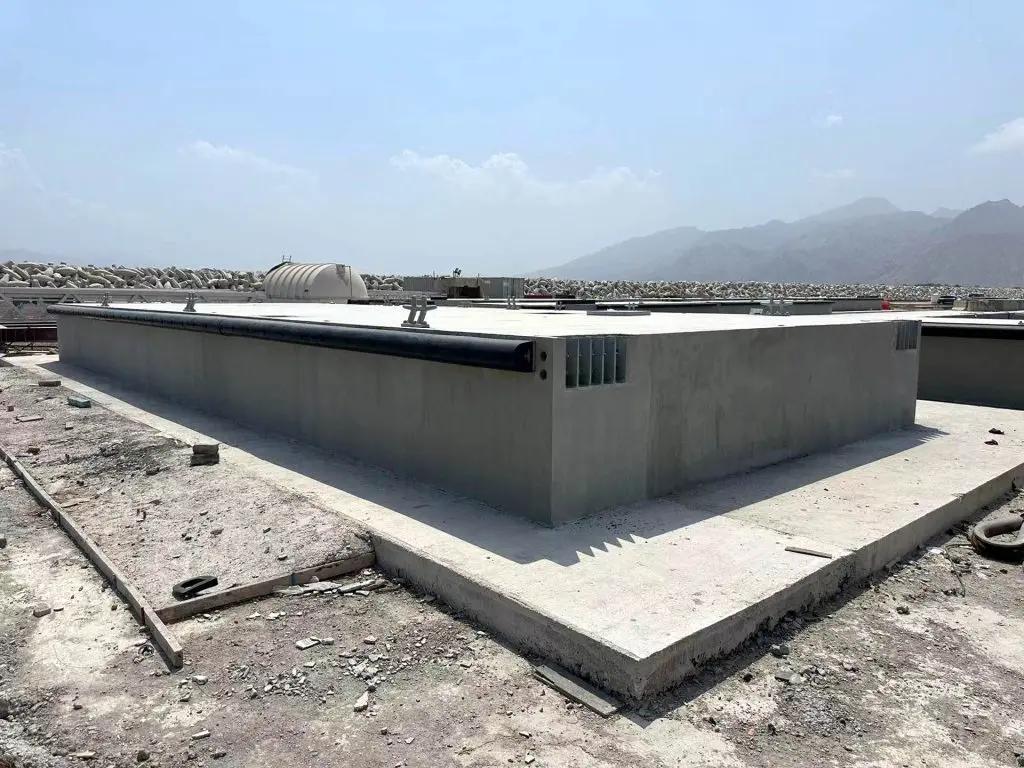

Concrete Pontoon
Livart Marine’s Concrete and Heavy Duty Pontoons incorporate the latest know-how in pontoon technology and are extensively used in both small and large marinas . Livart Marine’s pontoons are connected by flexible rubber bolt joints, using marine grade materials to produce conomical but very durable pontoons. Modules are available in a range of standard sizes; from 2400mm to 4500mm wide and weighing between 10 and 30 tons. A range of optional accessories can be incorporated to customize each specified system, which include different kinds of decking, cable ducts and service conduits. All Livart Marine’s concrete pontoons are of robust construction, with a 50-year design lifespan.

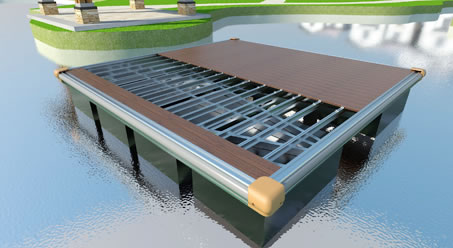

Aluminium Pontoon
Livart Marine Aluminium main pontoons are made from 6061 T6 or 6082 T6 marina grade alloy. The pontoon frame consists of two edge profiles connected to each other by crossbars and diagonals. All accessories, including fender, cleat, decking, floats, pile guide and fingers, can be attached or slide into positions, according to the operating requirements of the installations in question.
Steel Pontoon
Livart Marine’s Steel pontoon has the superiority of high durable performance, structural adequacy and good stability. The steel pontoon structures are fully welded and hot-dip galvanized to the required specifications. The deck material can be of natural Hardwood, Wood Polymer Composites or Treated wood. The component parts are connected to the main frames by SS316 stainless steel .
Customized Solutions
Floating Garden:
Livart Marine’s unique Floating Garden was developed in-house, taking into account a gardener’s dream, with safety handrail all around, cabana shade structures, and ample planting troughs for various farming. Computerized design which considered vertical and horizontal loading ensures that the supporting structures are of adequate strength and stability to promote plant growth.
Structure
All Livart Marine materials are marine grade, with high UV resistance and anti corrusion, have extremely long life even when exposed to the ocean and the sun all year round.
Mooring
Livart Cleat fixes to the pontoon by means of M18 Aisi 316 stainless screws.
Decking
Balau (Bangkirai) is a weather-resistant tropical hardwood , which makes beautiful outdoor decking. Its fine well-oiled grain, and high capacity of oil and iron protects it from distortion, corrosion,dampness, etc. In addition, its strength,high density and durability makes it ideal for outdoor industrial purposes like marina pontoon, access bridges , marina and seaport construction.
Anchoring
With the Seaflex mooring system, pontoons are moored to ground sinkers with pretensioned fibre rubber ropes. The system is strong and the pretensioning stabilizes the pontoon, keeping it in place regardless of water level variations. The system is easy to install and has a long lifespan due to its corrosion resistant components .

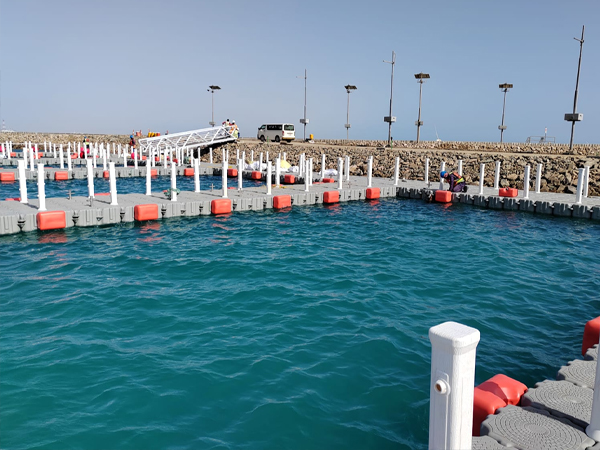

Floating
Livart Marine’s floats are made of high density polyethylene material.
Fasteners
Made from aluminium 6061 T6, desirable attributes are its strong weld connection, low friction polyethylene wearing blocks and rubber fenders installed all round. The position of the pile guide is adjustable to suit the piles already driven on site.
Fendering
Compared with other fenders, Livart Marine’s fender has a lower spring constant during its earlier stage of deflection, and is thus easily deformed until fully compressed. With such a characteristic, anchor bolt arrangement is not necessary to be so precise during installation.
Utilities
Service Bollard: Water, Electricity, SOS. The Quantum’s design embodies the qualities of our world leading classic pedestal, complemented by the strength and aesthetics of modern marine grade anodised extruded aluminium.
World
Reference
Europen /
Malta

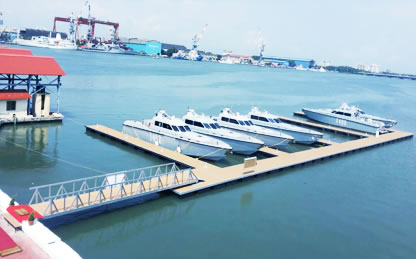

Kalkara Boat Yard Club-Phase I, Aluminium Floating Pontoon, was designed and constructed by Livart Marine, total 40 berths, completed on November 11, 2011.
View more +
Mediterranean /
Holland
Holland Marina, Aluminium Floating Pontoon, was designed and constructed by Livart Marine, total 30 Berths, completed on October 5, 2008.
View more +
Africa /
Uganda
Lake Victoria Marina Club, Aluminium Floating Pontoon, was designed and constructed by Livart Marine, total 35 berths, completed on May 1, 2013.
View more +

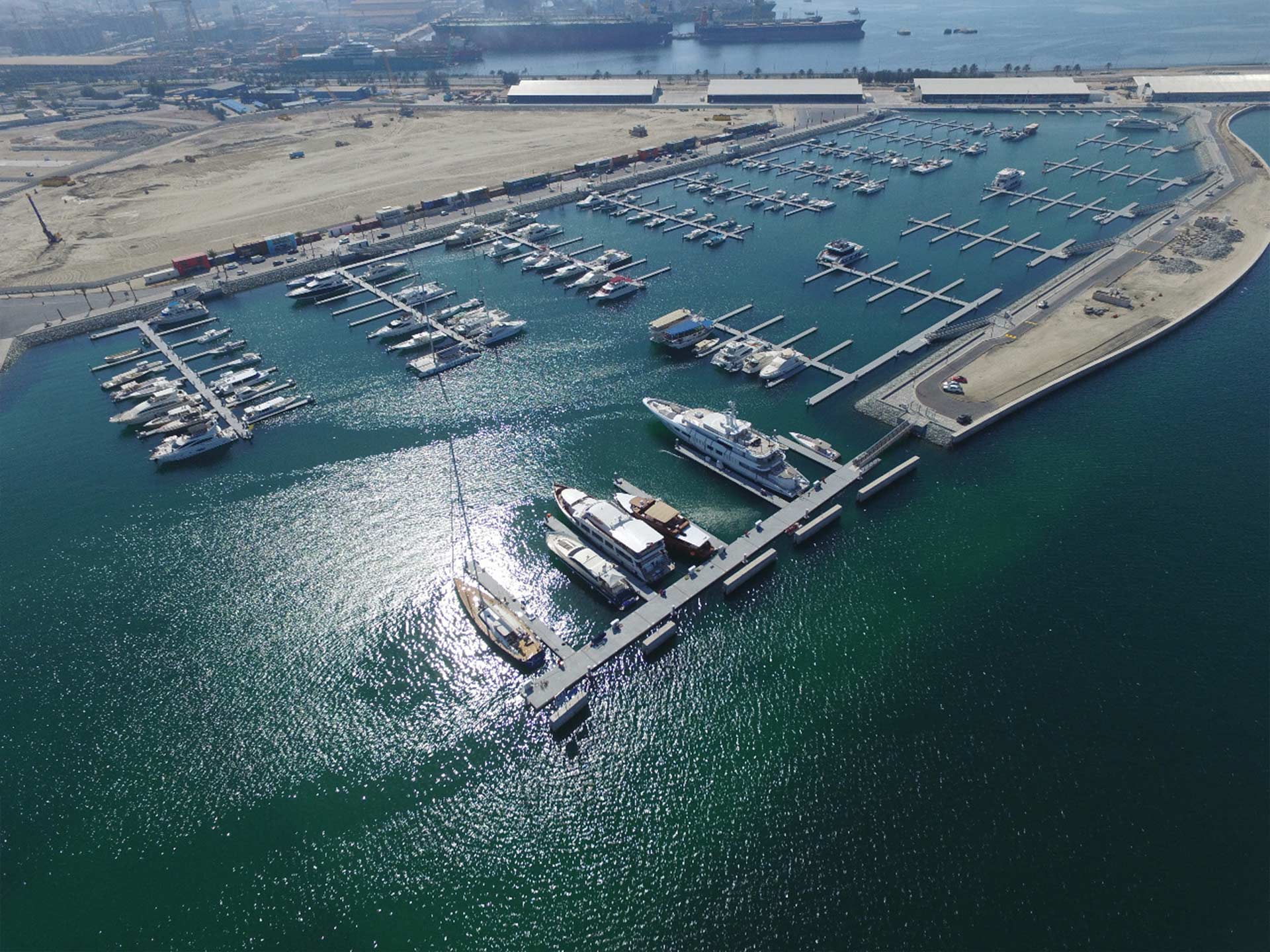

Mid-East /
Dubai Nash Marina
Dubai Nash Marina, Aluminium Floating Pontoon, was designed and constructed by Livart Marine, total 34 berths, completed on April 10, 2014.
View more +
South East Asia /
Korea
Namhae Sailing School at Namhae Moolgun, Korea, supplied by THE WINAVE; Aluminium Floating Pontoon, was designed and constructed by Livart Marine, total 50 berths, completed on December 1, 2011.
View more +
China Mainland /
Tianjin Rainbow Marina
Tianjin Rainbow Marina, Concrete Floating Pontoon, was designed and constructed by Livart Marine, total 82 berths.
View more +
Oceania /
Dominica Marinas
Dominica Marinas, Aluminium Floating Pontoon, was designed and constructed by Livart Marine, with a total construction area of 120 m², completed on December 25, 2014.
View more +East Asia
